Accurate and efficient in modern manufacturing. Tuomai provides world-class CNC bending machines, ensuring excellent precision, reliability, and performance.
Request a quoteExplore productsCompany incorporation
Product delivery
Expert Engineer

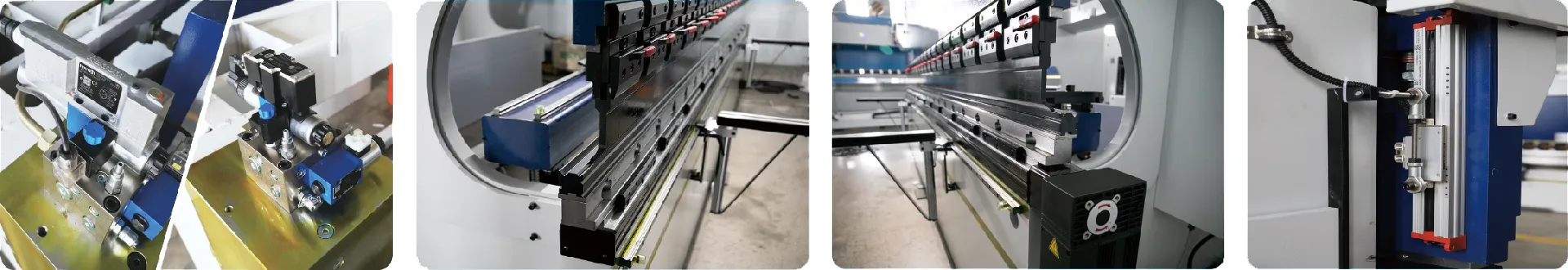

Proportional valve hydraulic follow-up control technology
By adopting hydraulic follow-up control technology, the synchronization accuracy of Y1 and Y2 axes during high-speed operation is ensured, achieving high bending processing efficiency.
Quick clamping of double V lower mold on the upper mold
The upper mold mechanical quick clamping device is easy to operate, and the replacement of the upper mold is faster and more convenient; The lower mold adopts a double V-mold and a "T" - shaped quick clamping method, which can achieve rapid mold replacement.
Mechanical deflection compensation device (standard)
By using a mechanical deflection compensation device, it can be automatically adjusted according to the instructions programmed by the CNC system: the overall compensation of the worktable and the overall curve of the compensating wedge block are more in line with the actual deformation curve of the machine tool, and the overall angle and straightness of the workpiece are better.
Imported grating ruler (optional)
The grating ruler can measure the exact distance between the slider and the worktable. The grating ruler is connected to the worktable, and the deformation of the column does not affect the position detection. The data is immediately fed back to the CNC system, allowing for the calculation and output of servo valve control signals for necessary correction, ensuring that the worktable and slider are always in a balanced state.
