Ground rail intelligent welding workstation

　　Equipment Overview

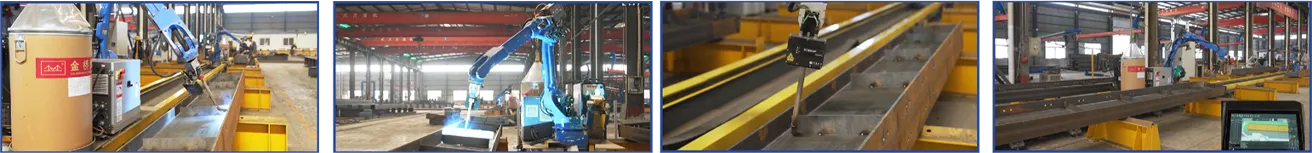

　　The ground rail intelligent workstation is equipped with the Baichu non teaching welding system and Baichu large distance seam finder, which can directly import 3D model files from Tekla, SOLIDWORKS or UG, directly match welding process parameters, automatically identify the precise position of the weld seam, and generate the optimized welding process for welding. Robot equipped with automatic gun cleaning device. It can be a single track or a dual track common track.

　　The ground rail walking axis increases the adaptability of the workpiece length direction. The robot can be linked with the ground rail to weld longer welds at once. The workstations on both sides of the track can work, and the ground rail is equipped with an automatic lubrication device. The dual robots have also greatly improved the efficiency of welding work.

　　At present, it is mainly used for welding H-shaped steel ordinary reinforcement plates, horizontal and vertical reinforcement plates, column bottom plates, pallets, cow legs and other structures.

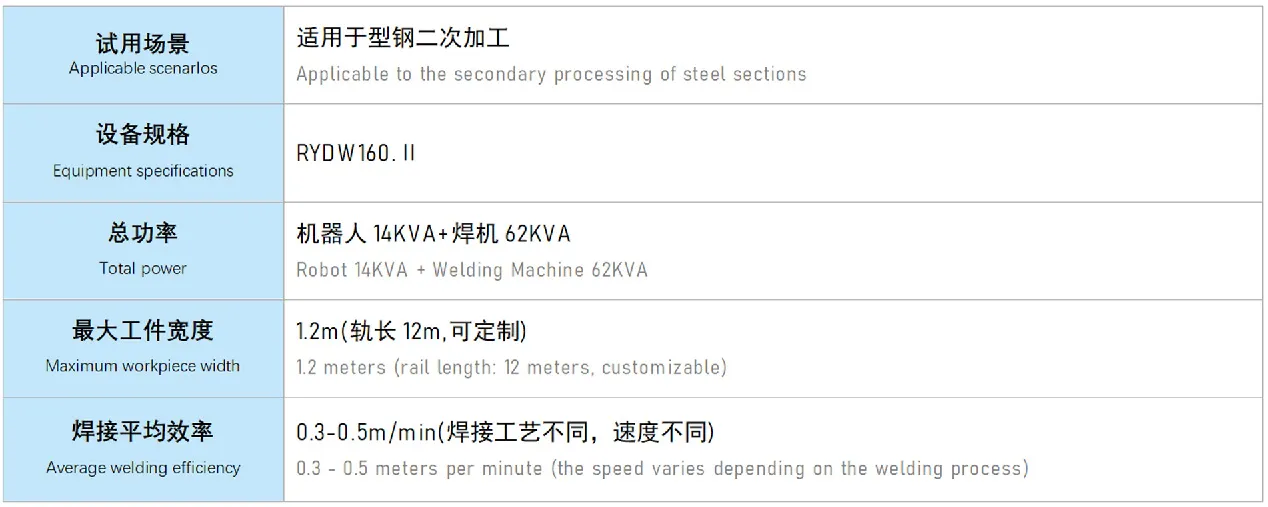

　　Parameter performance
